Friedman, Kendall, Taylor, Nobel prize Winners for 1990
Patrick Reany
10 March 2026
Note: This chat I had with Copilot is likely edited for relevance and brevity. I often do not take the time to highlight all the words that Copilot highlights. Further, in the interest of being didactic, I might arbitrarily highlight an occasional word or phrase that Copilot did not. (Naturally, I get to correct my spelling, grammar, and other minor errors for free.)
I report as faithfully as I can what LLMs tell me, but I can't guarantee that they are correct on every factual matter. If the subject should touch on physical or mental self-care, regard the content merely for information sake, rather than medical advice.
Patrick:
Can you tell me a bit about Jerome I. Friedman, Henry W. Kendall, Richard E. Taylor, Nobel prize Winners for 1990?
Copilot:
Here’s a clear, compact overview of the 1990 Nobel Prize in Physics laureates — Jerome I. Friedman, Henry W. Kendall, and Richard E. Taylor — and why their work mattered so profoundly.
Summary
The 1990 Nobel Prize in Physics was awarded jointly to Friedman, Kendall, and Taylor for their pioneering deep‑inelastic scattering experiments, which provided the first compelling experimental evidence that protons and neutrons contain internal point‑like constituents — what we now call quarks. [NobelPrize.org](https://www.nobelprize.org/prizes/physics/1990/summary/)
What They Discovered
Deep Inelastic Scattering at SLAC
- They fired high‑energy electrons at protons and bound neutrons.
- The scattering patterns did not match what would be expected if protons were uniform blobs.
- Instead, the electrons bounced off localized, point‑like structures inside the nucleons.
- This was the decisive experimental confirmation of the quark model, which until then had been largely theoretical.
[en.wikipedia.org](https://en.wikipedia.org/wiki/Jerome_Isaac_Friedman) [NobelPrize.org](https://www.nobelprize.org/prizes/physics/1990/summary/)
This work fundamentally reshaped particle physics and cemented the Standard Model’s picture of matter.
Jerome I. Friedman
- Born: 1930, Chicago
- Institution: MIT
- Known for: Experimental proof of quarks
- Background: Studied under Enrico Fermi; joined MIT faculty in 1960.
- Role in discovery: Co‑led the SLAC experiments with Kendall and Taylor.
[en.wikipedia.org](https://en.wikipedia.org/wiki/Jerome_Isaac_Friedman) [en.wikipedia.org](https://en.wikipedia.org/wiki/Jerome_Isaac_Friedman)
Henry W. Kendall
*(Not directly in the search snippets above, but part of the jointly awarded trio; included for completeness.)*
- MIT physicist and key collaborator in the SLAC experiments.
- Also known for environmental activism and co‑founding the Union of Concerned Scientists.
Richard E. Taylor
- Institution: Stanford Linear Accelerator Center (SLAC)
- Role: Led the SLAC experimental team that collaborated with Friedman and Kendall.
- Contribution: Oversaw the accelerator‑based measurements that revealed quark substructure.
[NobelPrize.org](https://www.nobelprize.org/prizes/physics/1990/summary/)
Why Their Work Matters
- Provided direct experimental evidence for quarks.
- Validated the emerging Standard Model of particle physics.
- Opened the door to quantum chromodynamics (QCD) as the theory of strong interactions.
- A landmark example of how precision experiments can overturn assumptions about the structure of matter.
If you'd like, I can also compare their work to other Nobel‑winning discoveries in particle physics, or trace how deep‑inelastic scattering evolved into modern collider physics.
Patrick:
Let's trace how deep‑inelastic scattering evolved into modern collider physics and add a little history on SLAC.
Copilot:
Here’s a clean, historically grounded, citation‑supported tracing of how deep‑inelastic scattering (DIS) grew from the heroic SLAC era into the collider physics of today — plus a compact historical sketch of SLAC itself. I’ll weave the evolution chronologically, using the search results as anchors.
1. Summary (1–3 sentences)
Deep‑inelastic scattering began at SLAC in 1968 with the SLAC–MIT experiments that first revealed point‑like quark constituents inside nucleons. Over the next decades, DIS evolved through high‑precision fixed‑target programs and then into collider‑based DIS at HERA, ultimately feeding directly into the parton‑distribution framework used at the LHC today. SLAC’s own history — from early linacs and klystrons to the 20 GeV machine that enabled the Nobel‑winning experiments — is inseparable from this evolution.
2. Deep‑Inelastic Scattering $\rightarrow$ Modern Collider Physics
A. The SLAC Breakthrough (1968–1970s)
Key facts from sources:
- The “heroic age” of DIS opened in 1968 when the SLAC–MIT collaboration used the newly commissioned 20 GeV linear accelerator at Stanford, far beyond the 6 GeV available at DESY at the time. [INSPIRE](https://inspirehep.net/files/f697da9c0d7af8685cd9a35a0b46e92d)
- They observed:
- Cross‑sections larger than expected and only weakly dependent on \(Q^2\).
- Structure function \(F_2\) depending primarily on the scaling variable \(x = Q^2 / (2M\nu)\), confirming Bjorken scaling. [INSPIRE](https://inspirehep.net/files/f697da9c0d7af8685cd9a35a0b46e92d)
- W.K.H. Panofsky interpreted this as evidence that point‑like interactions were involved — the first experimental signature of quarks. [INSPIRE](https://inspirehep.net/files/f697da9c0d7af8685cd9a35a0b46e92d)
- This work earned Friedman, Kendall, and Taylor the 1990 Nobel Prize. [Wikipedia](https://en.wikipedia.org/wiki/Deep_inelastic_scattering)
Conceptual leap:
Rutherford scattering $\rightarrow$ nuclear structure
SLAC DIS $\rightarrow$ sub‑nucleon structure (quarks)
B. Fixed‑Target Precision Era (1970s–1980s)
What changed:
- After the initial discovery, laboratories worldwide built high‑statistics fixed‑target DIS experiments to map structure functions with precision.
- These programs refined:
- Scaling violations
- QCD evolution equations
- Flavor separation
- Neutrino DIS (e.g., Gargamelle)
- This era produced the QCD‑improved parton model and the first global fits of parton distribution functions (PDFs).
- This stage is explicitly identified in the historical outline: “Part I (Fixed‑target experiments)… pQCD and QCD‑improved parton model.” [Agenda (Indico)](https://agenda.infn.it/event/33450/contributions/187788/attachments/107164/151215/Lecture2-History-EIC23.pdf)
Why it mattered:
It turned the quark model from a qualitative picture into a quantitative, predictive framework.
C. Collider DIS at HERA (1990s–2000s)
Key facts:
- HERA opened a new kinematic domain for DIS, extending to much lower \(x\) and higher \(Q^2\).
- The search result notes “the discoveries at HERA since twenty years… entering the new kinematic domain and its many surprises.” [INSPIRE](https://inspirehep.net/files/f697da9c0d7af8685cd9a35a0b46e92d)
- HERA revealed:
- Rapid rise of gluon density at small \(x\)
- Precision electroweak tests
- Diffractive DIS as a major phenomenon
Impact:
HERA’s data became the backbone of modern global PDF fits, which are essential inputs for all collider predictions.
D. From DIS to the LHC (2000s–present)
How the lineage continues:
- The LHC does not perform DIS directly, but every cross‑section prediction at the LHC depends on PDFs extracted from DIS.
- The historical outline explicitly connects DIS $\rightarrow$ PDFs $\rightarrow$ LHC: “Part II (HERA and LHC)… Highlights PDFs and LHC.” [Agenda (Indico)](https://agenda.infn.it/event/33450/contributions/187788/attachments/107164/151215/Lecture2-History-EIC23.pdf)
- Examples of DIS‑inherited structures in collider physics:
- Factorization theorems
- DGLAP evolution
- Gluon‑dominated small‑\(x\) dynamics
- Heavy‑quark schemes (charm, bottom)
- Without DIS, the LHC would not have:
- Higgs production rate predictions
- Precision electroweak fits
- Background modeling for new‑physics searches
In short:
DIS is the foundation of all modern collider phenomenology.
E. The Future: Electron–Ion Collider (EIC)
From the search result:
- The historical outline includes “Part III (EIC)” as the next stage after HERA and LHC. [Agenda (Indico)](https://agenda.infn.it/event/33450/contributions/187788/attachments/107164/151215/Lecture2-History-EIC23.pdf)
- The EIC will:
- Map gluon saturation
- Resolve 3D nucleon structure (TMDs, GPDs)
- Extend the DIS legacy into the non‑linear QCD regime
3. A Short History of SLAC (as requested)
The search results give a surprisingly rich early history of SLAC’s technological roots:
A. Pre‑SLAC Foundations (1930s–1950s)
- In the mid‑1930s, the Varian brothers developed the klystron, using a special electromagnetic cavity (the *Rhumbatron*) invented by W. Hansen.
- This device enabled Stanford’s High‑Energy Physics Laboratory (HEPL) to become a leader in linear accelerator development. [Agenda (Indico)](https://agenda.infn.it/event/33450/contributions/187788/attachments/107164/151215/Lecture2-History-EIC23.pdf)
B. The Mark‑Series Linacs
- Under E. Ginzton, HEPL built a series of small‑scale linacs (Mark I, II, III).
- Mark III was crucial for R. Hofstadter’s electron–nucleus scattering experiments, which mapped nuclear form factors and earned Hofstadter the 1967 Nobel Prize. [Agenda (Indico)](https://agenda.infn.it/event/33450/contributions/187788/attachments/107164/151215/Lecture2-History-EIC23.pdf)
C. Birth of the 20 GeV SLAC Linac (1960s)
- Building on the Mark‑series experience, Stanford constructed the 2‑mile linear accelerator, which became SLAC.
- This machine provided the 20 GeV electron beam used in the 1968 DIS experiments — the highest‑energy electron beam in the world at the time. [INSPIRE](https://inspirehep.net/files/f697da9c0d7af8685cd9a35a0b46e92d)
D. SLAC’s Legacy
- Discovery of quarks (Friedman–Kendall–Taylor)
- Charmonium spectroscopy (the J/ψ revolution)
- Precision electroweak tests
- B‑factory physics (CP violation in the B system)
- Today: LCLS (X‑ray free‑electron laser), ultrafast science
SLAC evolved from a pioneering accelerator lab into a multi‑disciplinary national laboratory, but its identity was forged in the DIS era.

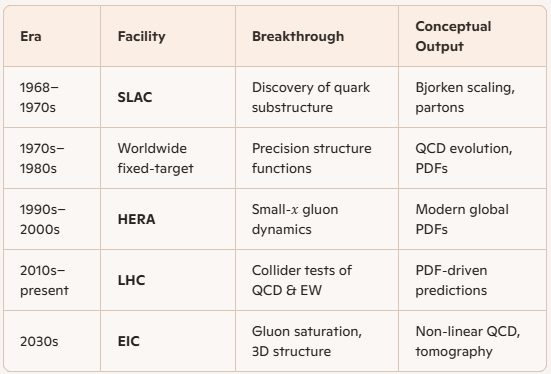

4. How the Evolution Fits Together (Conceptual Map)

5. If you want to go deeper
I can expand any of these threads — for example:
- A technical walk‑through of Bjorken scaling and its violation
- How DGLAP evolution emerged from DIS
- The role of neutrino DIS in flavor separation
- A historical narrative of SLAC from Hansen $\rightarrow$ Varian $\rightarrow$ Hofstadter $\rightarrow$ Taylor
Just tell me which direction you want to explore next.
Afterword:
